GEAR HEAD(GGM) - K6G

Á¦Ç° ÀÚ¼¼È÷º¸±â

DIMENSIONS

SPECIFICATIONS

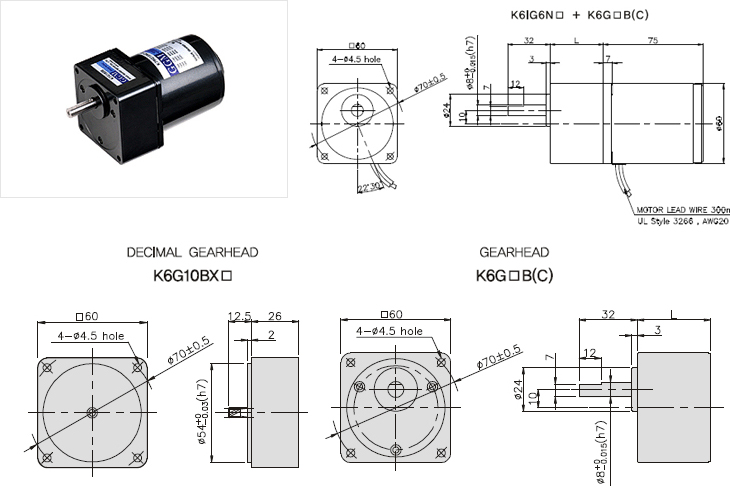

Ä¡¼öµµÇ¥
Ç°¹ø L Àû¿ë±âÁ¾ ÃëºÎ BOLT
01 30 K6G3~18B(C) M4 P0.7¡¿50
02 40 K6G20~250B(C) M4 P0.7¡¿60
03 26 K6G10BX M4 P0.7¡¿85
¹«°Ô
PART WEIGHT(kg)
MOTOR 0.72
DECIMAL GEARHEAD 0.22
GEARHEAD K6G3~18B(C) 0.26
K6G20~40B(C) 0.33
K6G50~250B(C) 0.36

RATED TORQUE OF GEARHEAD

50Hz

´ÜÀ§ = »ó´Ü: N¡¤m / ÇÏ´Ü : kgf¡¤cm

MODEL SPEED
(rpm)
500 416 300 250 200 166 150 120 100 83 75 60 50 41 37 30 25 20 16 15 12.5 10 8.3 7.5 6
MOTOR /
GEARHEAD
Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200 250
K6I¡à6N¡à
K6G¡àB(C)
0.11 0.14 0.19 0.23 0.29 0.34 0.38 0.48 0.57 0.69 0.69 0.86 1.03 1.23 1.37 1.54 1.85 2.31 2.78 3 3 3 3 3 3
1.1 1.4 1.9 2.3 2.9 3.4 3.8 4.8 5.7 6.9 6.9 8.6 10.3 12.3 13.7 15.4 18.5 23.1 27.8 30 30 30 30 30 30
60Hz

´ÜÀ§ = »ó´Ü: N¡¤m / ÇÏ´Ü : kgf¡¤cm

MODEL SPEED
(rpm)
600 500 360 300 240 200 180 144 120 100 90 72 60 50 45 36 30 24 20 18 15 12 10 9 7.2
MOTOR /
GEARHEAD
Ratio 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200 250
K6I¡à6N¡à
K6G¡àB(C)
0.1 0.12 0.16 0.19 0.24 0.29 0.32 0.41 0.49 0.58 0.58 0.73 0.87 1.05 1.17 1.31 1.57 1.97 2.36 2.62 3 3 3 3 3
1 1.2 1.6 1.9 2.4 2.9 3.2 4.1 4.9 5.8 5.8 7.3 8.7 10.5 11.7 13.1 15.7 19.7 23.6 26.2 30 30 30 30 30
  • GEARHEAD¡¤DECIMAL GEARHEAD´Â º°¸ÅÀÔ´Ï´Ù.
  • GEARHEADÀÇ Ç°¸íÁß ¡à¿¡´Â °¨¼Óºñ°¡ µé¾î°©´Ï´Ù.
  • ¡á »öÀÌ MOTOR¿Í °°Àº ¹æÇâ, ±×¿Ü¿¡´Â ¹Ý´ë ¹æÇâÀÔ´Ï´Ù.
  • Ç¥ÀÇ °¨¼Óºñº¸´Ù ´õ °¨¼ÓÇÏ°íÀÚ ÇÒ °æ¿ì´Â GEARHEAD¿Í MOTOR »çÀÌ¿¡ °¨¼Óºñ 10ÀÇ DECIMAL GEARHEAD¸¦ ¼³Ä¡ÇÒ ¼ö ÀÖ½À´Ï´Ù. ÀÌ °æ¿ìÀÇ Çã¿ë TORQUED´Â 3 N¡¤m / 30 kgf¡¤cm ÀÔ´Ï´Ù.
  • ȸÀü¼ö´Â MOTORÀÇ µ¿±â ȸÀü¼ö (50Hz : 1500rpm, 60Hz : 1800rpm)¸¦ ±âÁØÀ¸·Î ÇÏ¿© °¨¼Óºñ·Î ³ª¿ì¾î¼­ °è»êÇÏ¿´½À´Ï´Ù. ½ÇÁ¦ÀÇ È¸Àü¼ö´Â ºÎÇÏÀÇ Å©±â¿¡ µû¶ó¼­ Ç¥½ÃµÈ ¼öÄ¡º¸´Ù 2~20% Àû½À´Ï´Ù.
